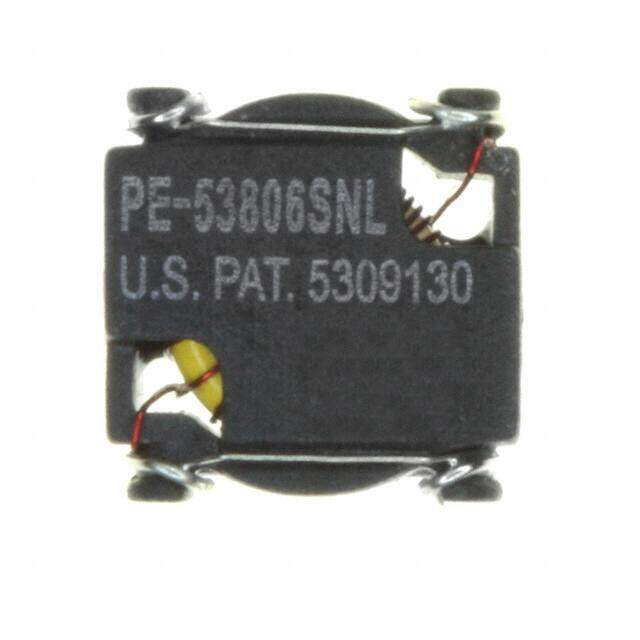

PE-53806SNL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Nonstandard 0.340Lx0.340W 8.64mmx8.64mm 39muH ±20%
PDF
/
Buying Options
Total Price: USD $2.67
Unit Price: USD $2.6664
≥1 USD $2.6664
≥10 USD $2.23256
≥100 USD $2.03808
≥500 USD $1.74709
≥1000 USD $1.60145
≥3000 USD $1.55291
Inventory: 1143
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.270 6.86mm
Height 6.86mm
Technical
Special Feature SIMPLE SWITCHER
DC Current 340mA
Case/Size Code 3434
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 340mA
DC Resistance (DCR) 800mOhm
Inductance 39μH
Military Standard Not
Current Rating 340mA
Depth 8.64mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Resistance 800mOhm
Type Toroidal
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.340Lx0.340W 8.64mmx8.64mm
Published 2008
Packaging Bulk
Operating Temperature -40°C~130°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Number of Pins 20
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 15 Weeks

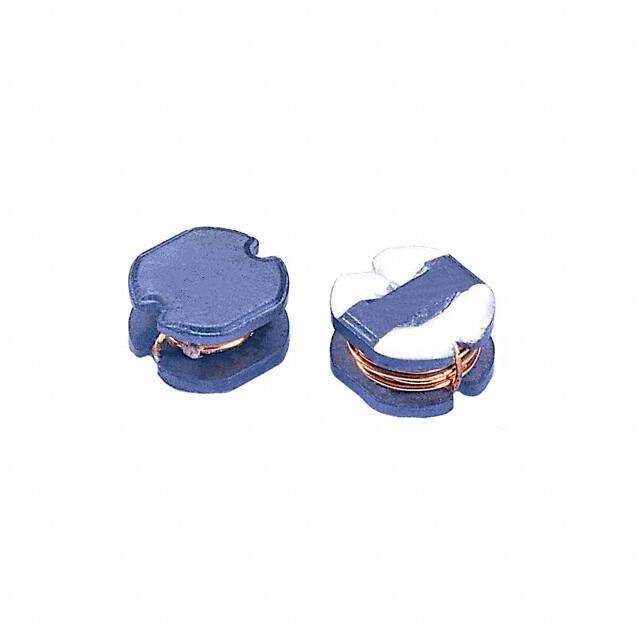

Alternative Model
