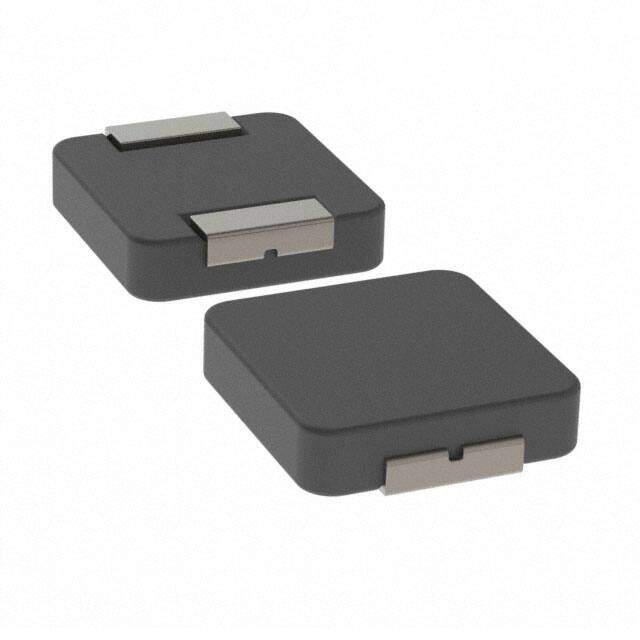

PA4546.562NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
INDUCTOR 5.6UH SMT 4.7 X 4.3
PDF
/
Inventory: 9945
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PA4546.XXXNLT
Size / Dimension 0.175Lx0.160W 4.45mmx4.06mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Molded
Current Rating (Amps) 1.7A
Shielding Unshielded
Inductance 5.6μH
DC Resistance (DCR) 208mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 2.3A
Dimensions
Height Seated (Max) 0.047 1.20mm
Compliance
RoHS Status RoHS Compliant
