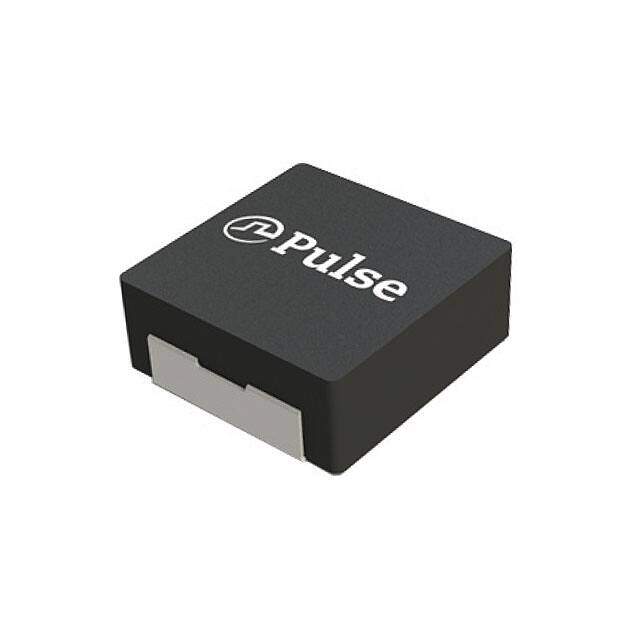

PA4344.682NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PA4344.XXXNLT Nonstandard 0.697Lx0.677W 17.70mmx17.20mm 6.8muH
PDF
/
Buying Options
Total Price: USD $3.52
Unit Price: USD $3.52
≥1 USD $3.52
≥10 USD $2.94096
≥100 USD $2.685056
≥500 USD $2.301376
≥1000 USD $2.109624
Inventory: 681
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PA4344.XXXNLT
Size / Dimension 0.697Lx0.677W 17.70mmx17.20mm
Tolerance 20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Molded
HTS Code 8504.50.80.00
Current Rating (Amps) 19A
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Inductance 6.8μH
Test Frequency 0.1MHz
DC Resistance (DCR) 9.2mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 32A
Case/Size Code 7068
Rated Current-Max 19A
Dimensions
Height Seated (Max) 0.276 7.00mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
