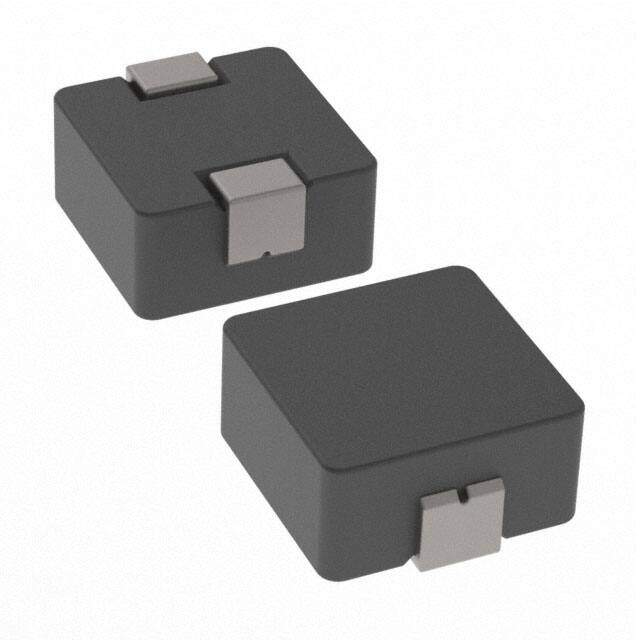

PA4343.472ANLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PA4343.XXXANLT Nonstandard 0.531Lx0.496W 13.50mmx12.60mm 4.7muH
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.452
≥100 USD $1.337952
≥500 USD $1.195568
≥1000 USD $0.996248
≥3000 USD $0.967754
Inventory: 1266
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.256 6.50mm
Technical
Special Feature STANDARD: TS 16949
Rated Current-Max 20A
Current - Saturation 21A
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 8mOhm Max
Test Frequency 0.1MHz
Inductance 4.7μH
Number of Functions 1
Shielding Shielded
Current Rating (Amps) 17A
Type Molded
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.531Lx0.496W 13.50mmx12.60mm
Series PA4343.XXXANLT
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
