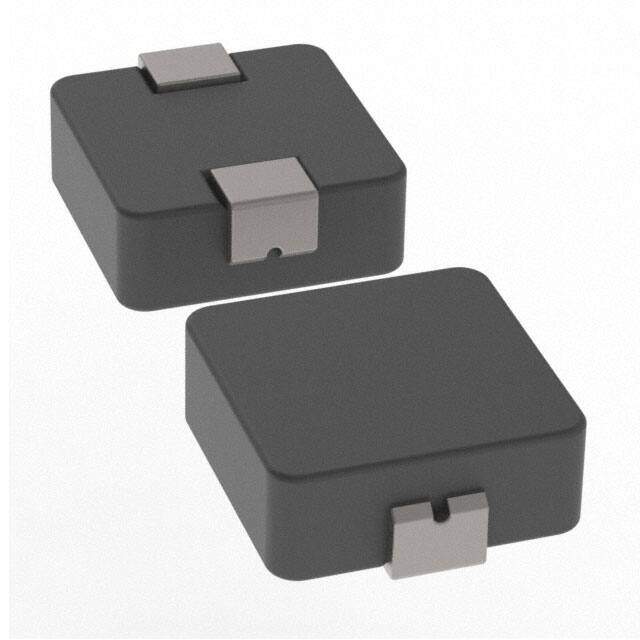

PA4342.822ANLT image
Favorite
PA4342.822ANLT image
Favorite

PA4342.822ANLT

Pulse Electronics Power
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description INDUCTOR 8.2 UH SMT 11.5 X 10.3
PDF
/
Inventory: 1867
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series PA4342.XXXANLT
Size / Dimension 0.433Lx0.394W 11.00mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Molded
Current Rating (Amps) 6.5A
Shielding Shielded
Inductance 8.2μH
DC Resistance (DCR) 28mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 8.5A

Dimensions

Height Seated (Max) 0.157 4.00mm

Compliance

RoHS Status RoHS Compliant
Ratings AEC-Q200
