PA4341.681NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PA4341.XXXNLT Nonstandard 0.299Lx0.272W 7.60mmx6.90mm 680nH
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.71896
≥100 USD $0.653312
≥500 USD $0.614064
≥1000 USD $0.50952
≥3000 USD $0.470342
Inventory: 1197
Minimum: 1
-
+
Technical Details
Technical
Number of Functions 1
Inductance 680nH
Test Frequency 0.1MHz
DC Resistance (DCR) 5.5mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 25A
Case/Size Code 3027
Rated Current-Max 15.5A
Shielding YES
Packing Method TR, 13 Inch
Current Rating (Amps) 15.5A
HTS Code 8504.50.80.00
Type Molded
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.299Lx0.272W 7.60mmx6.90mm
Series PA4341.XXXNLT
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks

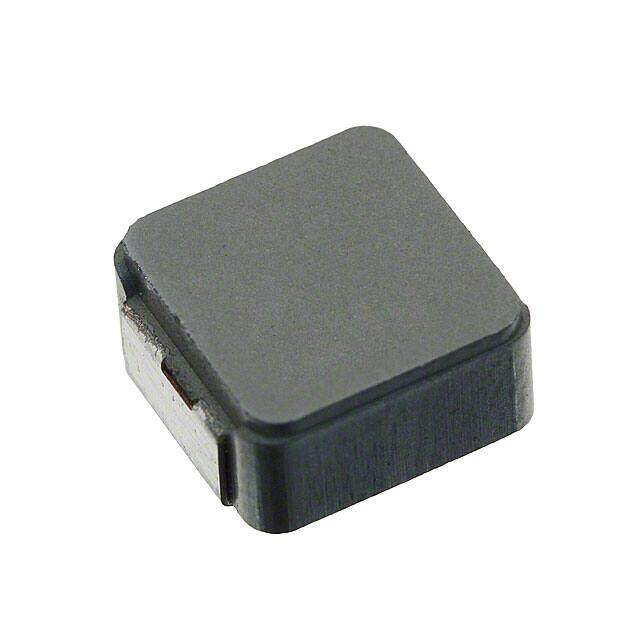

Alternative Model
