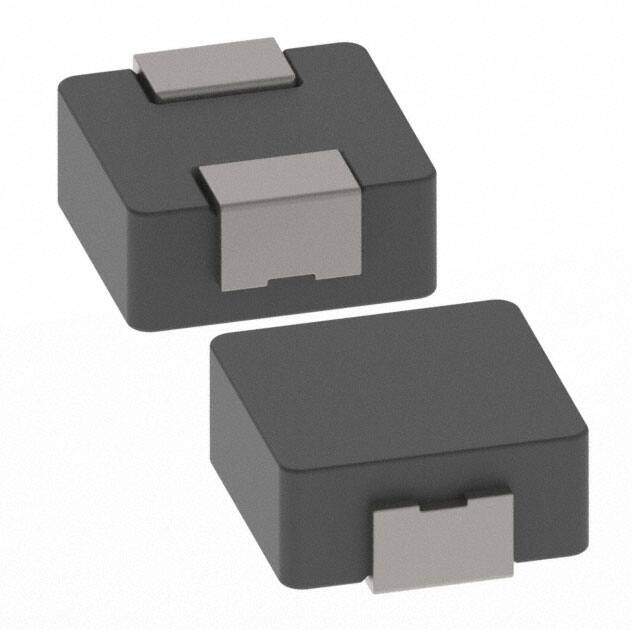

PA4341.153ANLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PA4341.XXXANLT Nonstandard 0.280Lx0.260W 7.10mmx6.60mm 15muH
PDF
/
Buying Options
Total Price: USD $0.64
Unit Price: USD $0.6424
≥1 USD $0.6424
≥10 USD $0.5412
≥100 USD $0.492096
≥500 USD $0.462528
≥1000 USD $0.383768
≥3000 USD $0.354253
Inventory: 1100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series PA4341.XXXANLT
Size / Dimension 0.280Lx0.260W 7.10mmx6.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Molded
Current Rating (Amps) 3A
Packing Method TR, 13 INCH
Shielding Shielded
Number of Functions 1
Inductance 15μH
Test Frequency 0.1MHz
DC Resistance (DCR) 140mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 4.5A
Case/Size Code 2826
Rated Current-Max 3A
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
