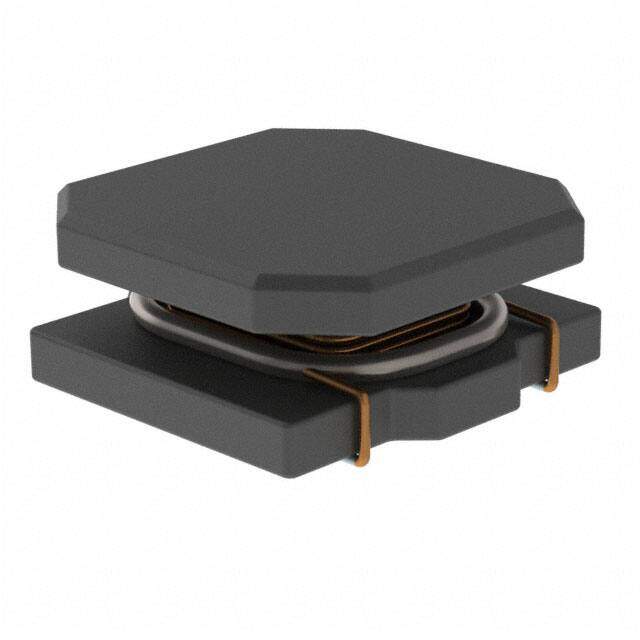

PA4336.222NLT image
Favorite
PA4336.222NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description INDUCTOR 2.2UH SMT 4.2 X 4.2
PDF
/
Inventory: 2982
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.079 2.00mm

Technical

Current - Saturation 3.4A
Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 52mOhm Max
Inductance 2.2μH
Shielding Shielded
Current Rating (Amps) 1.85A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Series PA4336.XXXNLT
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Iron
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 9 Weeks
