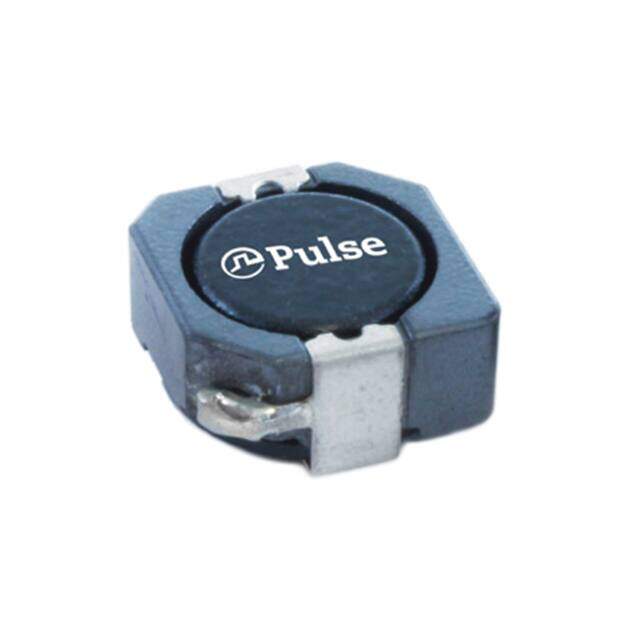

PA4321.103NLT image
Favorite
PA4321.103NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard, Corner Terminals
Category Inductors, Coils, Chokes / Fixed Inductors
Description PA4321 Nonstandard Corner Terminals 0.394Lx0.402W 10.00mmx10.20mm 10muH
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8744
≥1 USD $1.8744
≥10 USD $1.59456
≥100 USD $1.469248
≥500 USD $1.313136
≥1000 USD $1.094192
≥3000 USD $1.06297
Inventory: 2281
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.201 5.10mm

Technical

Current - Saturation 3.08A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 23mOhm Max
Inductance 10μH
Shielding Shielded
Current Rating (Amps) 3.84A
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.394Lx0.402W 10.00mmx10.20mm
Series PA4321
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard, Corner Terminals
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 11 Weeks
