PA4310.333NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RoHS Compliant Wirewound Active 8504.50.80.00 Fixed Inductor -40C~125C 100kHz 109mOhm Max 33muH
PDF
/
Inventory: 1660
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PA4310.XXXNL
Size / Dimension 0.504Lx0.504W 12.80mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 6.5A
Inductance 33μH
Test Frequency 100kHz
DC Resistance (DCR) 109mOhm Max
Inductance Frequency - Test 100kHz
Dimensions
Height Seated (Max) 0.315 8.00mm
Compliance
RoHS Status RoHS Compliant

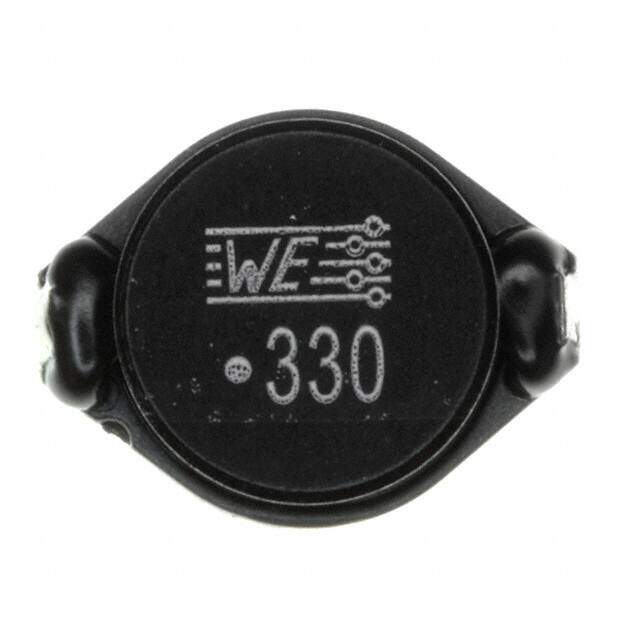

Alternative Model
