PA4309.473NLT

Pulse Electronics Power
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description RoHS Compliant Wirewound Active 8504.50.80.00 Fixed Inductor -40C~125C 100kHz 182mOhm Max 47muH
PDF
/
Inventory: 5974
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.276 7.00mm

Technical

Inductance Frequency - Test 100kHz
DC Resistance (DCR) 182mOhm Max
Test Frequency 100kHz
Inductance 47μH
Current Rating 5.2A
Shielding Unshielded
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.504Lx0.504W 12.80mmx12.80mm
Series PA4309.XXXNL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 11 Weeks

Alternative Model

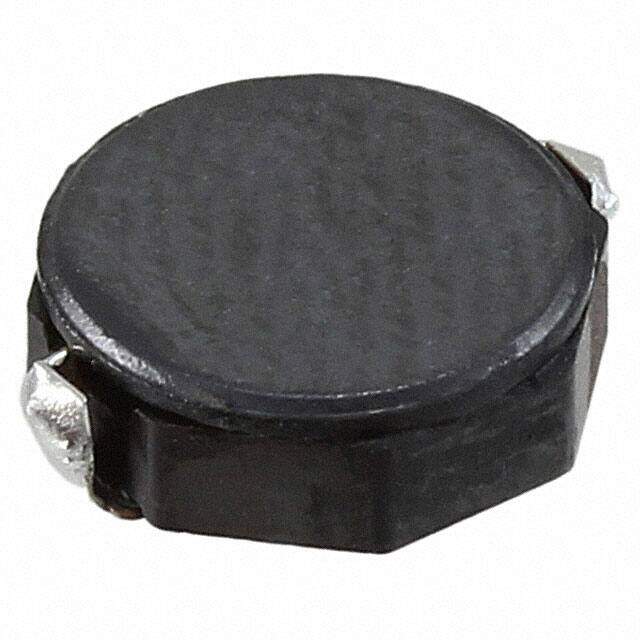

CDRH8D28NP-470NC

CDRH8D28NP-470NC

Sumida America Components Inc.

Recommended For You

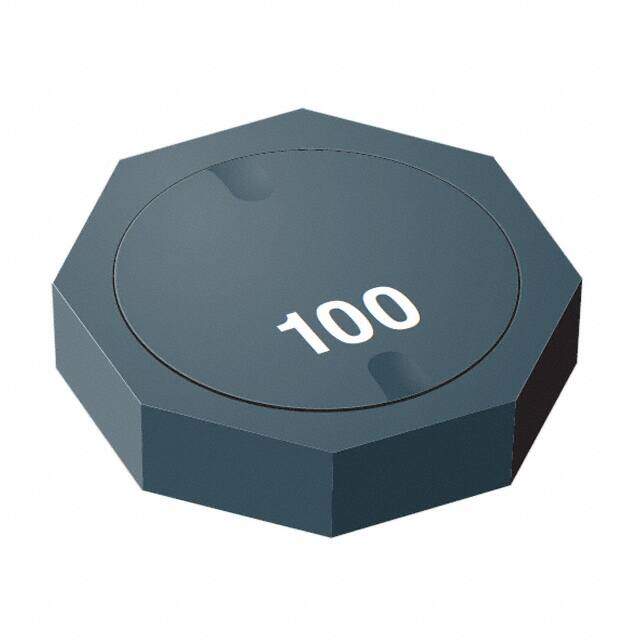

SRU1028A-470Y
