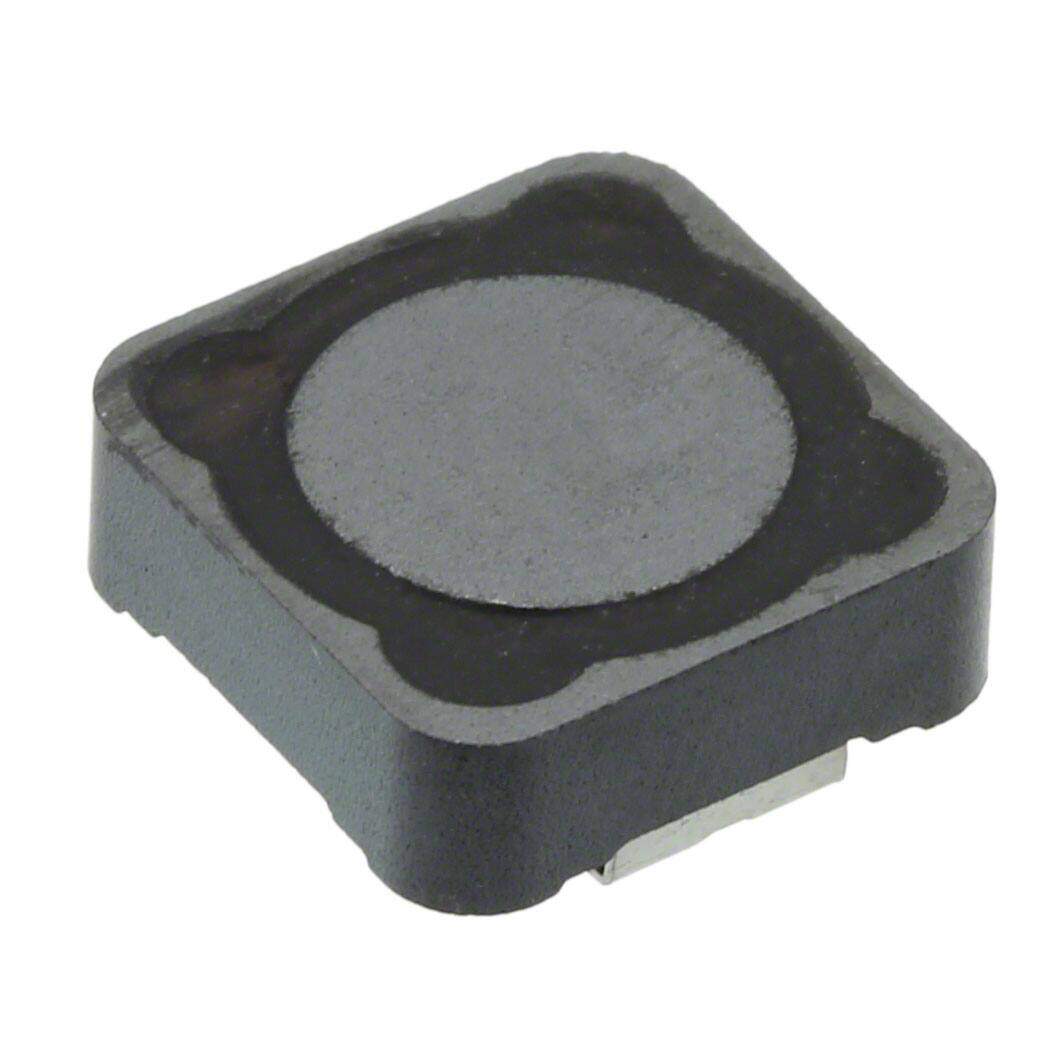

PA4304.184NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RoHS Compliant Wirewound Active 8504.50.80.00 fixed air core inductor -40C~125C 1kHz 290mOhm Max 180muH
PDF
/
Inventory: 1572
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PA4304.XXXNLT
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Shielded
Current Rating 900mA
Inductance 180μH
Test Frequency 1kHz
DC Resistance (DCR) 290mOhm Max
Inductance Frequency - Test 1kHz
Dimensions
Height Seated (Max) 0.236 6.00mm
Compliance
RoHS Status RoHS Compliant
