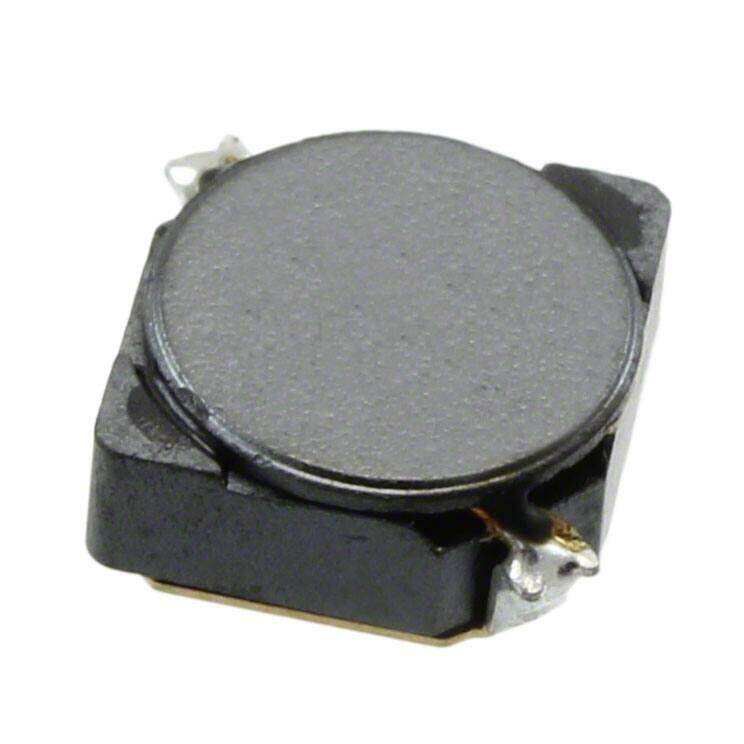

PA4301.102NLT image
Favorite
PA4301.102NLT image
Favorite

PA4301.102NLT

Pulse Electronics Power
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PA4301.XXXNLT Nonstandard 0.283Lx0.283W 7.20mmx7.20mm 1muH
PDF
/
Inventory: 5833
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PA4301.XXXNLT
Size / Dimension 0.283Lx0.283W 7.20mmx7.20mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Shielded
Current Rating 3.6A
Inductance 1μH
Test Frequency 100kHz
DC Resistance (DCR) 18.2mOhm Max
Max DC Current 3.6A

Dimensions

Height Seated (Max) 0.118 3.00mm

Compliance

RoHS Status RoHS Compliant
