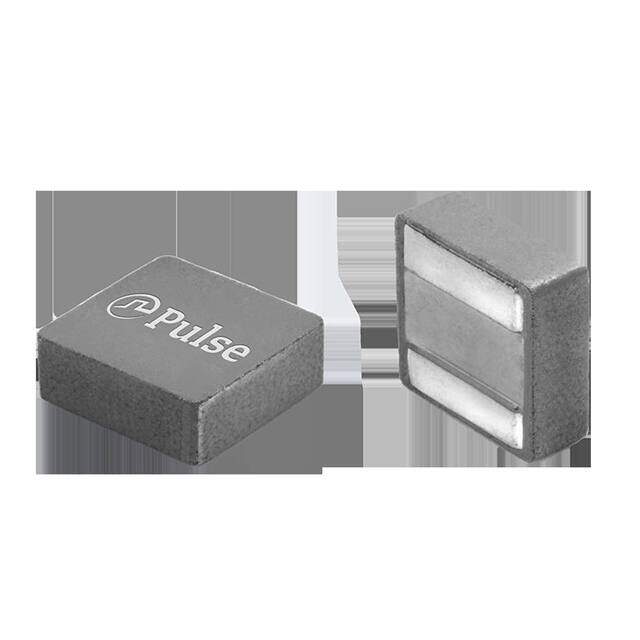

PA2247.103NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
INDUCTOR COMPOSITE 10.0UH 24A
PDF
/
Buying Options
Total Price: USD $6.28
Unit Price: USD $6.280686
≥1 USD $6.280686
≥10 USD $5.92518
≥100 USD $5.589793
≥500 USD $5.273381
≥1000 USD $4.974894
Inventory: 5530
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -55°C~125°C
Series PA2247.XXXNLT
Size / Dimension 0.650Lx0.610W 16.50mmx15.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 24A
Shielding Unshielded
Inductance 10μH
DC Resistance (DCR) 8.6mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 26A
Dimensions
Height Seated (Max) 0.394 10.00mm
Compliance
RoHS Status RoHS Compliant
