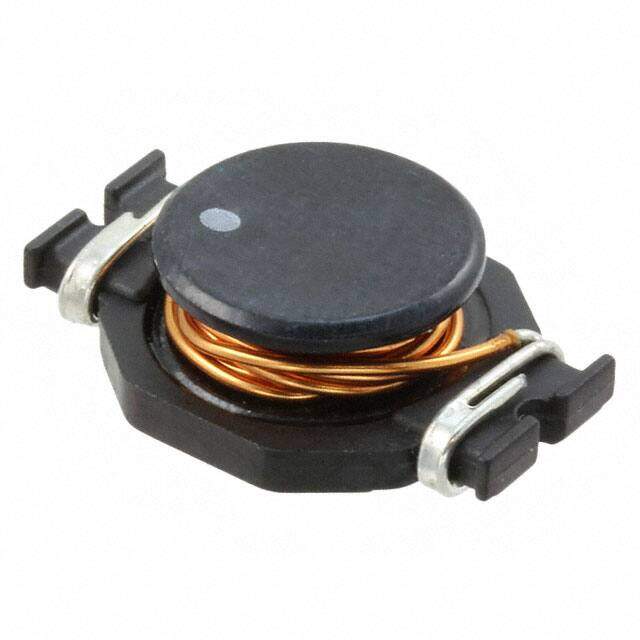

P1252.103NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
P1252NL Nonstandard 0.879Lx0.596W 22.33mmx15.14mm 10muH
PDF
/
Buying Options
Total Price: USD $1.73
Unit Price: USD $1.7336
≥1 USD $1.7336
≥10 USD $1.47576
≥100 USD $1.359776
≥500 USD $1.215104
≥1000 USD $1.012528
Inventory: 957
Minimum: 1
-
+
Technical Details
Technical
DC Resistance (DCR) 26mOhm Max
Max DC Current 10A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 8759
DC Current 6A
Special Feature INDUCTANCE MEASURED WITH PEAK DC CURRENT
Test Frequency 100kHz
Inductance 10μH
Military Standard Not
Current Rating 6A
Depth 15.14mm
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±20%
Size / Dimension 0.879Lx0.596W 22.33mmx15.14mm
Series P1252NL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C
Dimensions
Height 7.493mm
Height Seated (Max) 0.295 7.49mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Physical
Core Material Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
