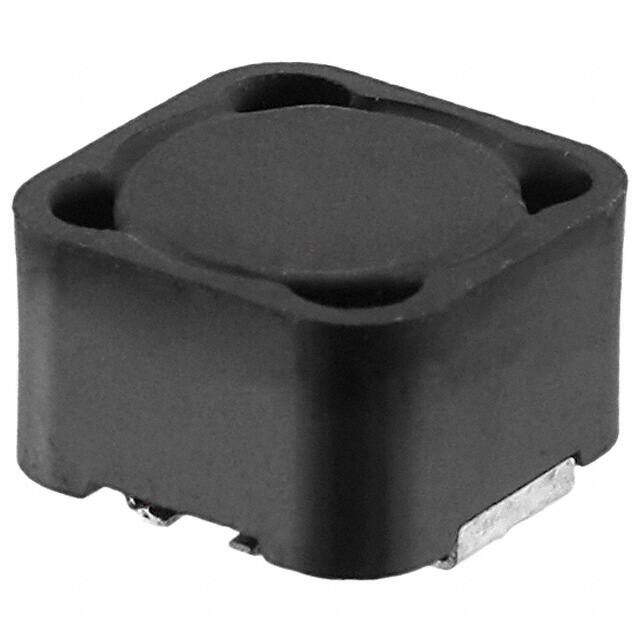

P1172.473NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
P1172NL Nonstandard 0.482Lx0.482W 12.24mmx12.24mm 47muH
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.7952
≥1 USD $1.7952
≥10 USD $1.52328
≥100 USD $1.403424
≥500 USD $1.254352
≥1000 USD $1.045264
Inventory: 1138
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.315 8.00mm
Height 8.001mm
Technical
DC Current 2.6A
Case/Size Code 4848
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 7MHz
Max DC Current 2.6A
DC Resistance (DCR) 89mOhm Max
Test Frequency 100kHz
Inductance 47μH
Military Standard Not
Current Rating 2.6A
Construction Chip
Depth 12.24mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.482Lx0.482W 12.24mmx12.24mm
Series P1172NL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C
Physical
Core Material AMORPHOUS MAGNETIC
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
