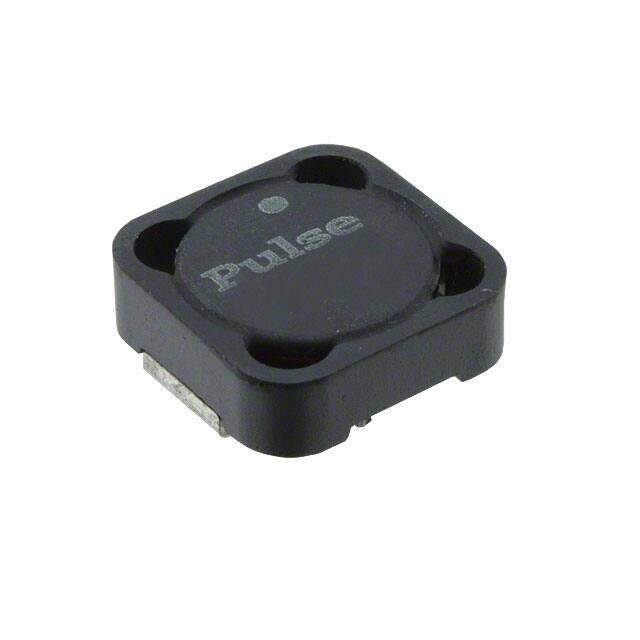

P1168.824NLT image
Favorite
P1168.824NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description RoHS Compliant Wirewound Active WRAPAROUND Fixed Inductor -40C~130C 1.7MHz 2.355Ohm Max 820muH
PDF
/
Inventory: 2124
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.177 4.50mm
Height 4.4958mm

Technical

Case/Size Code 4848
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 1.7MHz
Max DC Current 440mA
DC Resistance (DCR) 2.355Ohm Max
Test Frequency 100kHz
Inductance 820μH
Current Rating 440mA
Depth 12.24mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.482Lx0.482W 12.24mmx12.24mm
Series P1168NL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C

Physical

Core Material AMORPHOUS MAGNETIC
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
