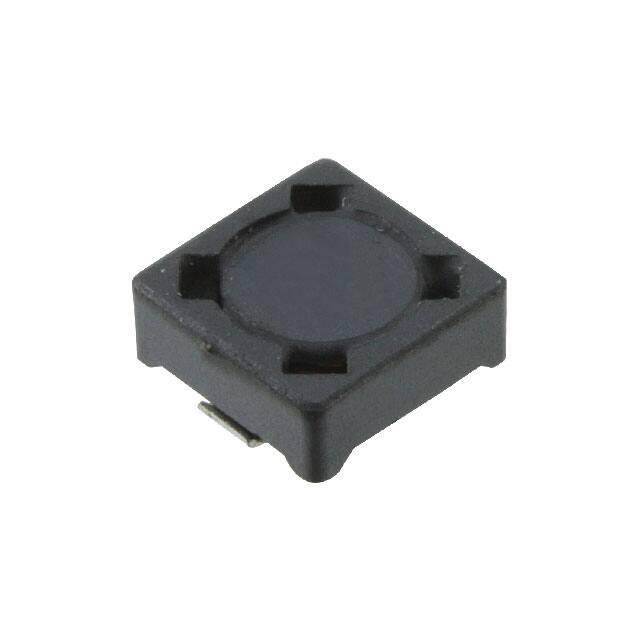

P1166.273NLT image
Favorite
P1166.273NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description P1166NL Nonstandard 0.297Lx0.297W 7.54mmx7.54mm 27muH
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.648573
≥1 USD $0.648573
≥200 USD $0.250764
≥500 USD $0.242887
≥1200 USD $0.237635
Inventory: 7907
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~130°C
Packaging Tape & Reel (TR)
Series P1166NL
Size / Dimension 0.297Lx0.297W 7.54mmx7.54mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 180mOhm
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 7.54mm
Current Rating 1A
Military Standard Not
Reference Standard AEC-Q200
Inductance 27μH
Test Frequency 100kHz
DC Resistance (DCR) 180mOhm Max
Max DC Current 1A
Frequency - Self Resonant 17MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 1.1A
Case/Size Code 3030
DC Current 1A

Dimensions

Height 3.51mm
Height Seated (Max) 0.138 3.51mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
