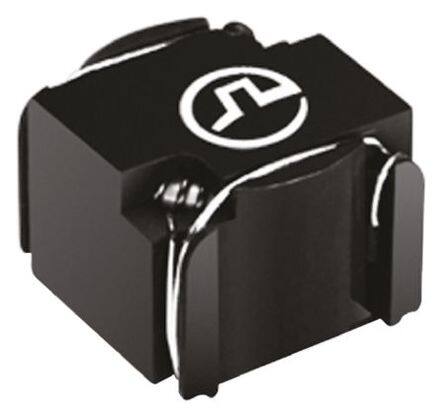

P0846SNLT image
Favorite
P0846SNLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description LCI-50 Nonstandard 0.700Lx0.670W 17.78mmx17.02mm 15muH
PDF
/
Buying Options
Total Price: USD $2.49
Unit Price: USD $2.4904
≥1 USD $2.4904
≥10 USD $2.11816
≥100 USD $1.95184
≥500 USD $1.74416
≥1000 USD $1.453496
Inventory: 1116
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 15 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Number of Pins 2
Shape/Size Description CYLINDRICAL PACKAGE

Technical

Operating Temperature -40°C~130°C
Packaging Tape & Reel (TR)
Published 2007
Series LCI-50
Size / Dimension 0.700Lx0.670W 17.78mmx17.02mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Toroidal
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 17.02mm
Current Rating 5A
Military Standard Not
Inductance 15μH
Test Frequency 260kHz
DC Resistance (DCR) 27mOhm
Max DC Current 5A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 7067
Inductance Tolerance 20%
DC Current 5A
RMS Current (Irms) 5A
Special Feature SIMPLE SWITCHER

Dimensions

Height 9.91mm
Height Seated (Max) 0.390 9.91mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
