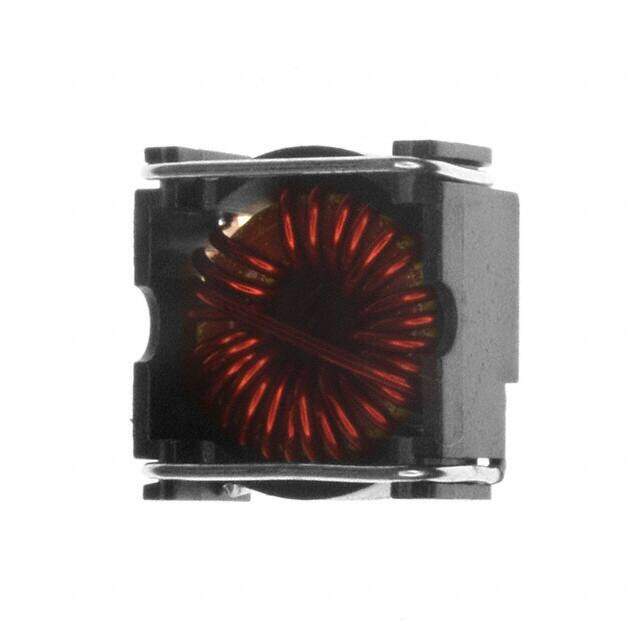

P0845SNLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LCI-44 Nonstandard 0.620Lx0.600W 15.75mmx15.24mm 10muH
PDF
/
Inventory: 1445
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.390 9.91mm
Height 9.91mm
Technical
Special Feature SIMPLE SWITCHER
DC Current 4.3A
Case/Size Code 6260
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 4.3A
DC Resistance (DCR) 50mOhm
Inductance 10μH
Military Standard Not
Current Rating 4.3A
Depth 15.24mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Resistance 50mOhm
Type Toroidal
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.620Lx0.600W 15.75mmx15.24mm
Series LCI-44
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 15 Weeks
