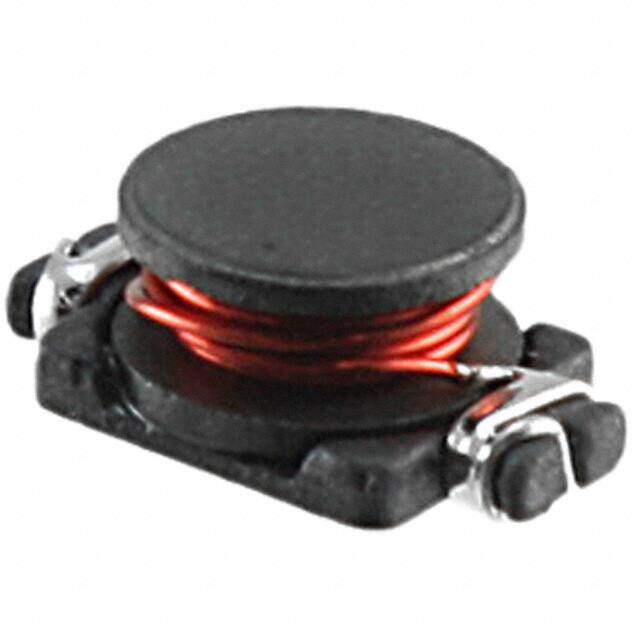

P0770.333NL image
Favorite
P0770.333NL image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description RoHS Compliant Wirewound Active ONE SURFACE fixed air core inductor -40C~130C 100kHz 510mOhm Max 33muH
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9416
≥1 USD $0.9416
≥10 USD $0.79552
≥100 USD $0.72336
≥500 USD $0.6798
≥1000 USD $0.564168
≥3000 USD $0.520749
Inventory: 4943
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.115 2.92mm

Technical

Special Feature INDUCTANCE MEASURED WITH PEAK RATED CURRENT
Rated Current-Max 0.58A
Case/Size Code 2618
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 510mOhm Max
Test Frequency 100kHz
Inductance 33μH
Current Rating 600mA
Number of Functions 1
Shielding NO
Current Rating (Amps) 580mA
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Series P0770NL
Packaging Tray
Operating Temperature -40°C~130°C

Physical

Core Material Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 11 Weeks
