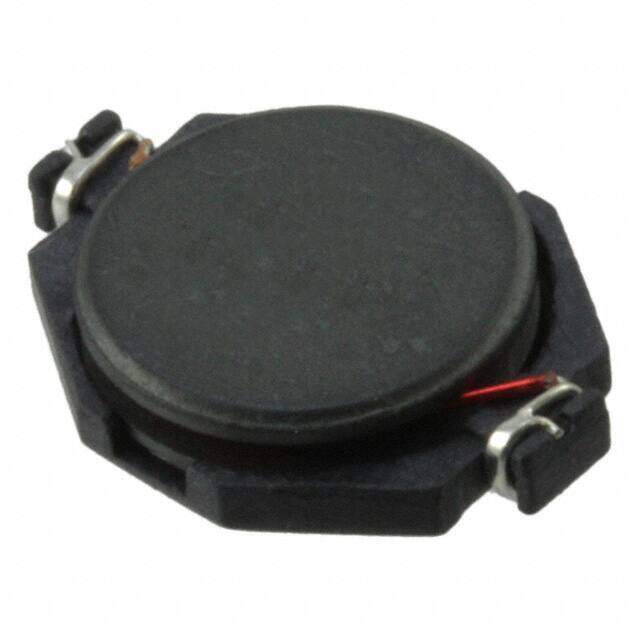

P0762.333NLT image
Favorite
P0762.333NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description RoHS Compliant Wirewound Active ONE SURFACE Fixed Inductor -40C~130C 100kHz 300mOhm Max 33muH
PDF
/
Inventory: 5411
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~130°C
Packaging Tape & Reel (TR)
Series P0762NL
Size / Dimension 0.510Lx0.370W 12.95mmx9.40mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 9.4mm
Current Rating 1.1A
Military Standard Not
Inductance 33μH
Test Frequency 100kHz
DC Resistance (DCR) 300mOhm Max
Max DC Current 1.4A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 5137
DC Current 1.1A
Special Feature INDUCTANCE MEASURED WITH PEAK DC CURRENT

Dimensions

Height 2.9972mm
Height Seated (Max) 0.118 3.00mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
