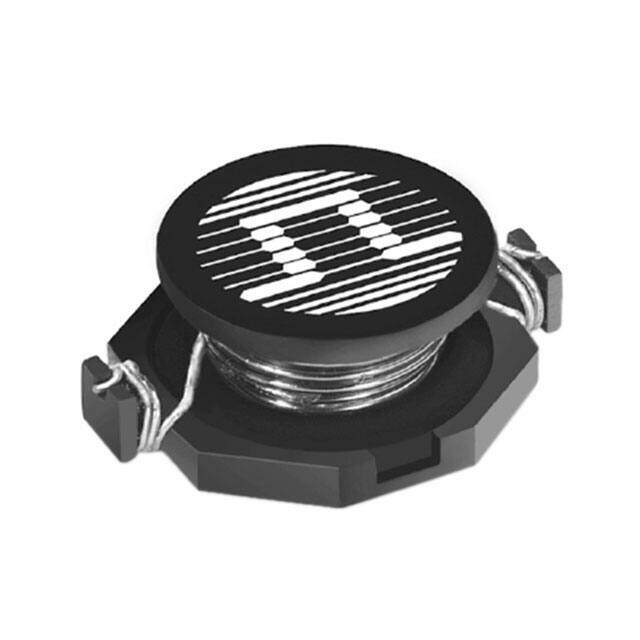

P0751.102NL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
P0751NL Nonstandard 0.510Lx0.370W 12.95mmx9.40mm 1muH
PDF
/
Inventory: 8506
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Current Rating 6.8A
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±20%
Size / Dimension 0.510Lx0.370W 12.95mmx9.40mm
Series P0751NL
Packaging Tray
Operating Temperature -40°C~130°C
Special Feature INDUCTANCE MEASURED WITH PEAK DC CURRENT
Case/Size Code 5137
Current - Saturation 9A
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 10mOhm Max
Test Frequency 100kHz
Inductance 1μH
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.215 5.46mm
