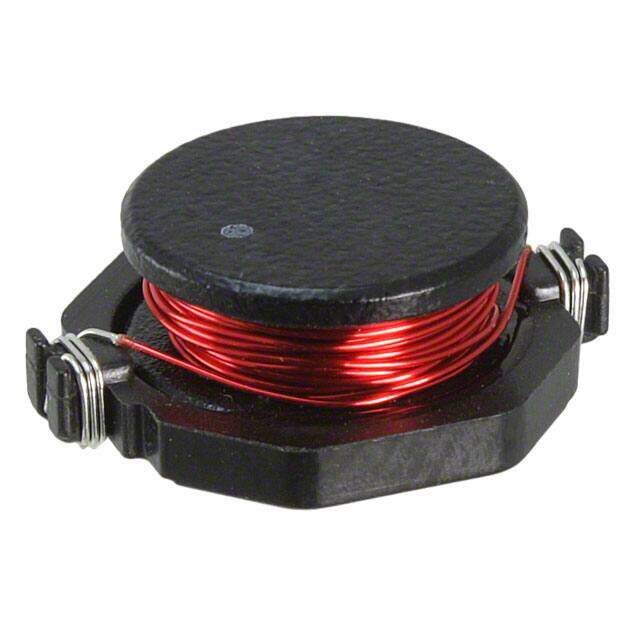

P0250.333NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
P0250NL Nonstandard 0.733Lx0.596W 18.62mmx15.14mm 33muH
PDF
/
Buying Options
Total Price: USD $1.35
Unit Price: USD $1.3464
≥1 USD $1.3464
≥10 USD $1.14224
≥100 USD $1.052832
≥500 USD $0.94072
≥1000 USD $0.783904
Inventory: 2296
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~130°C
Packaging Tape & Reel (TR)
Series P0250NL
Size / Dimension 0.733Lx0.596W 18.62mmx15.14mm
Tolerance ±15%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 15.14mm
Current Rating 3A
Military Standard Not
Inductance 33μH
Test Frequency 100kHz
DC Resistance (DCR) 66mOhm Max
Max DC Current 5.5A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 7360
DC Current 3A
Special Feature INDUCTANCE MEASURED WITH PEAK DC CURRENT
Dimensions
Height 7.366mm
Height Seated (Max) 0.290 7.36mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
