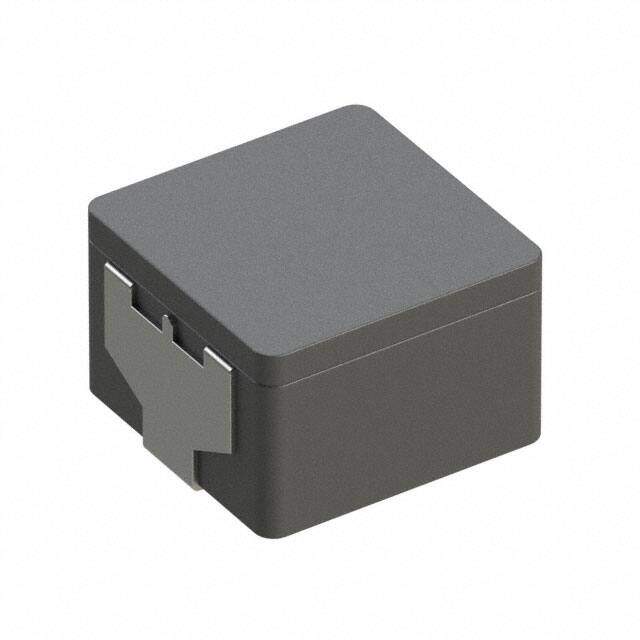

ETQ-P4M100KFM
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PCC-M0748M-LE Nonstandard 0.291Lx0.276W 7.40mmx7.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.7304
≥100 USD $0.663872
≥500 USD $0.624096
≥1000 USD $0.51788
≥3000 USD $0.478051
Inventory: 1012
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Metal Composite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series PCC-M0748M-LE
Size / Dimension 0.291Lx0.276W 7.40mmx7.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Current Rating (Amps) 6A
Packing Method TR, 13 Inch
Shielding Shielded
Number of Functions 1
Construction Rectangular
Inductance 10μH
Test Frequency 0.1MHz
DC Resistance (DCR) 39.6mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 9.6A
Case/Size Code 2928
Rated Current-Max 6A
Special Feature DC RESISTANCE MEASURED AT: 10%
Dimensions
Height Seated (Max) 0.189 4.80mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
