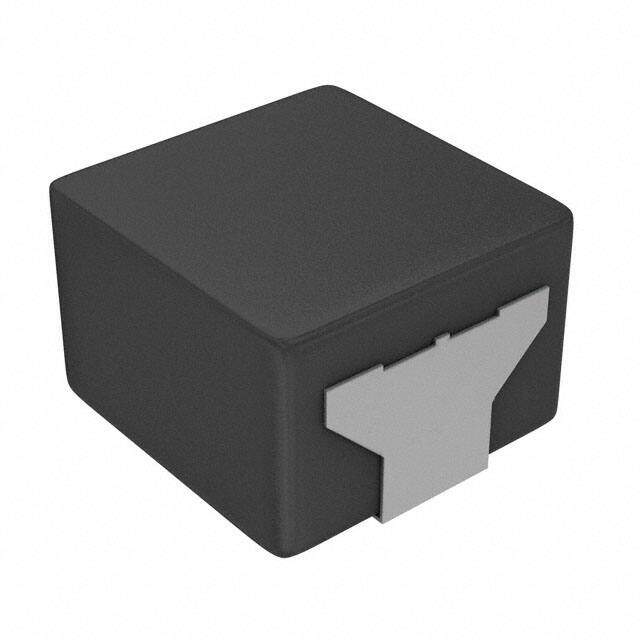

ETQ-P3M4R7KVP
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PCC-M0530M 2-SMD J-Lead 0.217Lx0.197W 5.50mmx5.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $5.15
Unit Price: USD $5.15185
≥1 USD $5.15185
≥10 USD $4.2275
≥100 USD $4.09545
≥500 USD $3.9634
≥1000 USD $3.83135
Inventory: 1137
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Material - Core Metal Composite
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2016
Series PCC-M0530M
Size / Dimension 0.217Lx0.197W 5.50mmx5.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8504.50.80.00
Current Rating (Amps) 4.1A
Shielding Shielded
Inductance 4.7μH
DC Resistance (DCR) 50.16mOhm Max
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 6.7A
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
