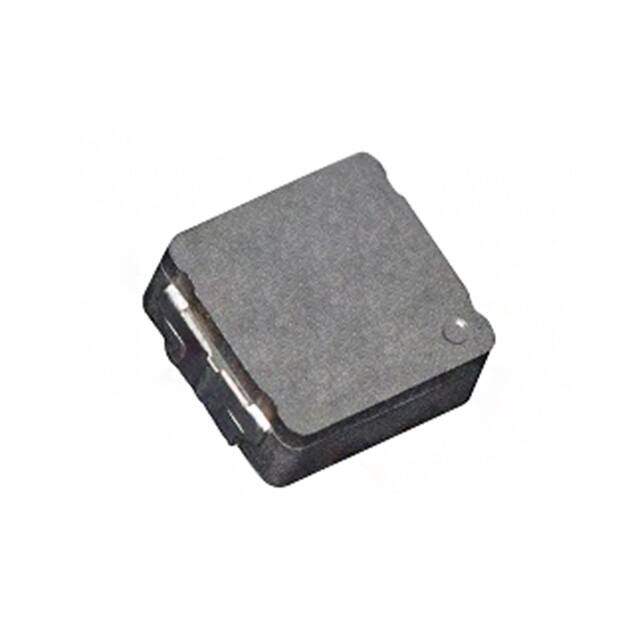

ETQ-P3M220HFN
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PCC-M0630M-H Nonstandard 0.217Lx0.197W 5.50mmx5.00mm 22muH
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.3552
≥1 USD $1.3552
≥10 USD $1.15016
≥100 USD $1.04544
≥500 USD $0.982784
≥1000 USD $0.815496
≥3000 USD $0.752787
Inventory: 4144
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Metal Composite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series PCC-M0630M-H
Size / Dimension 0.217Lx0.197W 5.50mmx5.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Current Rating (Amps) 2.5A
Packing Method TR, EMBOSSED, 13 INCH
Shielding Shielded
Number of Functions 1
Construction RECTANGULAR PACKAGE
Inductance 22μH
Test Frequency 0.1MHz
DC Resistance (DCR) 158.4mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 4A
Case/Size Code 2624
Rated Current-Max 2.5A
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
