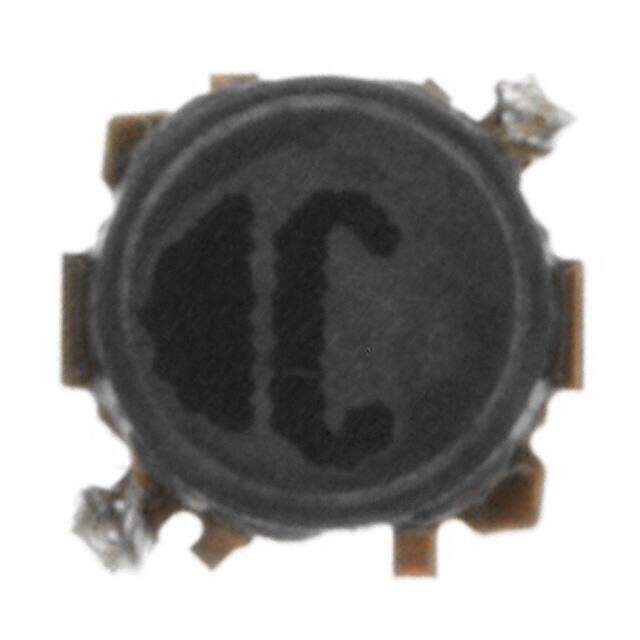

ELL-VGG1R6N image
Favorite
ELL-VGG1R6N image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description G Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 1.6muH
PDF
/
Buying Options
Total Price: USD $3.01
Unit Price: USD $3.0077
≥1 USD $3.0077
≥10 USD $2.4681
≥100 USD $2.39115
≥500 USD $2.31325
≥1000 USD $2.2363
Inventory: 2118
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height Seated (Max) 0.059 1.50mm
Height 1.5mm

Technical

Self Resonant Frequency 100kHz
Series Resistance 73mOhm
RMS Current (Irms) 1.55A
DC Current 1.55A
Inductance Tolerance 30%
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.8A
Current 1A
DC Resistance (DCR) 73mOhm
Test Frequency 100kHz
Inductance 1.6μH
Military Standard Not
Current Rating 1.8A
Depth 3.2mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Resistance 73mOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±30%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series G
Packaging Tape & Reel (TR)

Physical

Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
