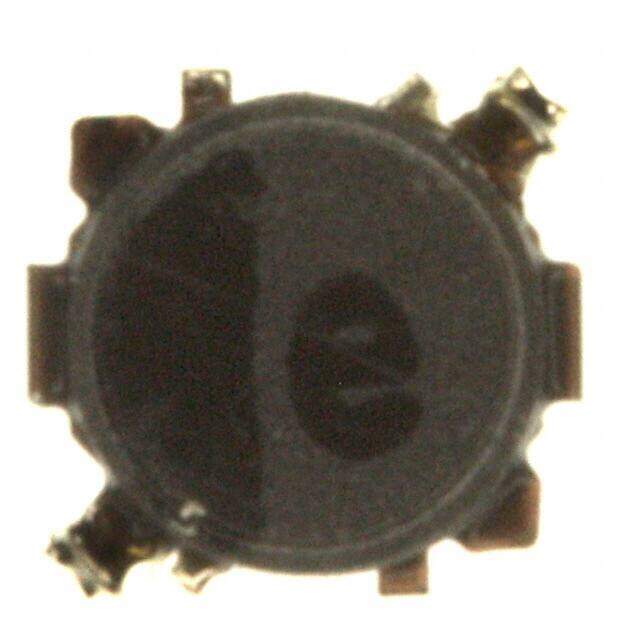

ELL-VFG3R3NC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
G Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 3.3muH
PDF
/
Inventory: 4836
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.047 1.20mm
Height 1.2mm
Technical
Special Feature DCR IS MEASURED AT 20% TOLERANCE
Series Resistance 110mOhm
DC Current 1.25A
Case/Size Code 1212
Current - Saturation 980mA
Terminal Placement DUAL ENDED
Inductor Application DC-DC CONVERTER
Max DC Current 1.25A
DC Resistance (DCR) 110mOhm
Test Frequency 100kHz
Inductance 3.3μH
Military Standard Not
Current Rating 1.25A
Depth 3.2mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±30%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series G
Packaging Tape & Reel (TR)
Physical
Weight 25.004279mg
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
