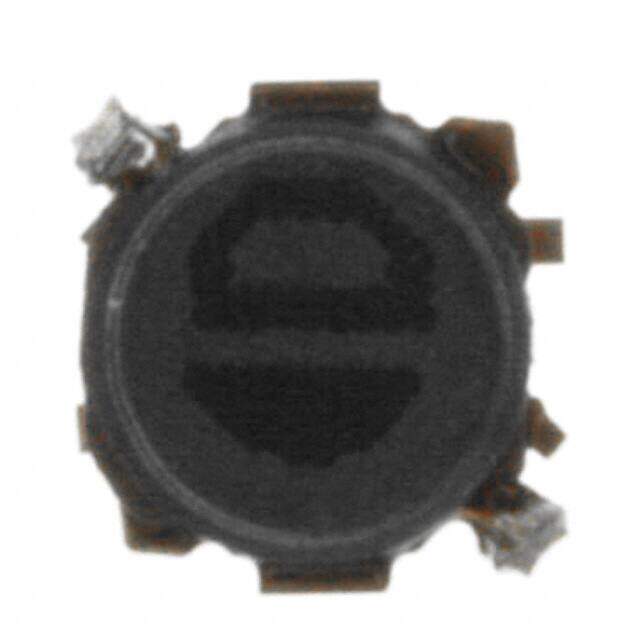

ELL-VEG2R2N image
Favorite
ELL-VEG2R2N image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description G Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $9.33
Unit Price: USD $9.3309
≥1 USD $9.3309
≥10 USD $7.65605
≥100 USD $7.41665
≥500 USD $7.1782
≥1000 USD $6.9388
Inventory: 3152
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height Seated (Max) 0.039 1.00mm
Height 1mm

Technical

Self Resonant Frequency 100kHz
Series Resistance 110mOhm
RMS Current (Irms) 1.25A
DC Current 1.25A
Inductance Tolerance 30%
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.25A
Current 520mA
DC Resistance (DCR) 110mOhm
Test Frequency 100kHz
Inductance 2.2μH
Military Standard Not
Current Rating 1.1A
Depth 3.2mm
Number of Functions 1
Shielding Shielded
Packing Method TR, Embossed
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Resistance 110mOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±30%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series G
Published 2008
Packaging Tape & Reel (TR)

Physical

Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
