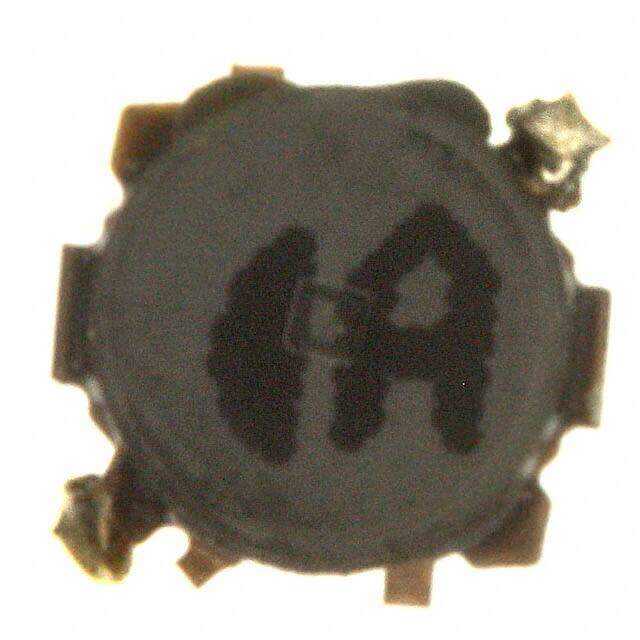

ELL-VEG1R0N
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
G Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 1muH
PDF
/
Buying Options
Total Price: USD $12.22
Unit Price: USD $12.22175
≥1 USD $12.22175
≥10 USD $10.0282
≥100 USD $9.71565
≥500 USD $9.40215
≥1000 USD $9.08865
Inventory: 22003
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Technical
Packaging Tape & Reel (TR)
Published 2008
Series G
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Tolerance ±30%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 61mOhm
Max Operating Temperature 150°C
Min Operating Temperature -55°C
HTS Code 8504.50.80.00
Packing Method TR, Embossed
Shielding YES
Number of Functions 1
Depth 3.2mm
Current Rating 1.6A
Military Standard Not
Inductance 1μH
Test Frequency 100kHz
DC Resistance (DCR) 61mOhm
Max DC Current 1.9A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Tolerance 30%
DC Current 1.6A
RMS Current (Irms) 1.6A
Series Resistance 61mOhm
Self Resonant Frequency 100kHz
Dimensions
Height 1mm
Height Seated (Max) 0.039 1.00mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
