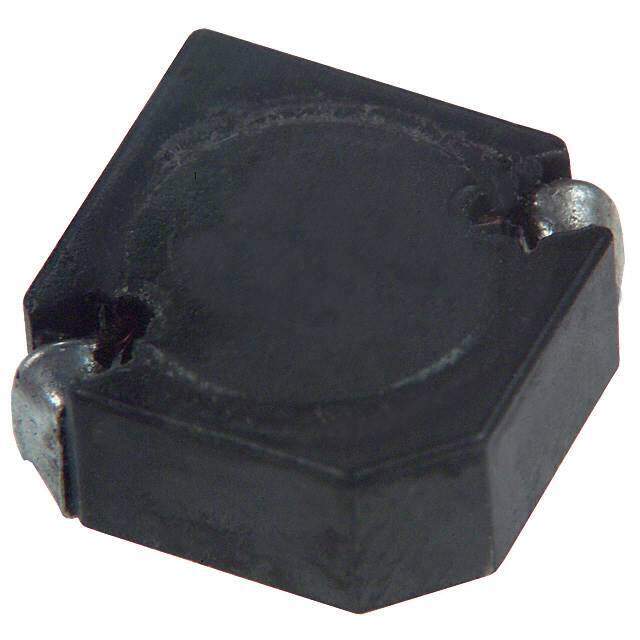

ELL-ATV331M image
Favorite
ELL-ATV331M image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description V Nonstandard 0.394Lx0.394W 10.00mmx10.00mm 330muH
PDF
/
Inventory: 907
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.177 4.50mm
Height 4.5mm

Technical

Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
DC Current 550mA
Case/Size Code 3939
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 550mA
Current 4.35A
DC Resistance (DCR) 550mOhm
Test Frequency 100kHz
Inductance 330μH
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Military Standard Not
Current Rating 550mA
Construction Rectangular
Depth 10.5mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.394Lx0.394W 10.00mmx10.00mm
Series V
Published 2011
Packaging Tape & Reel (TR)

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
