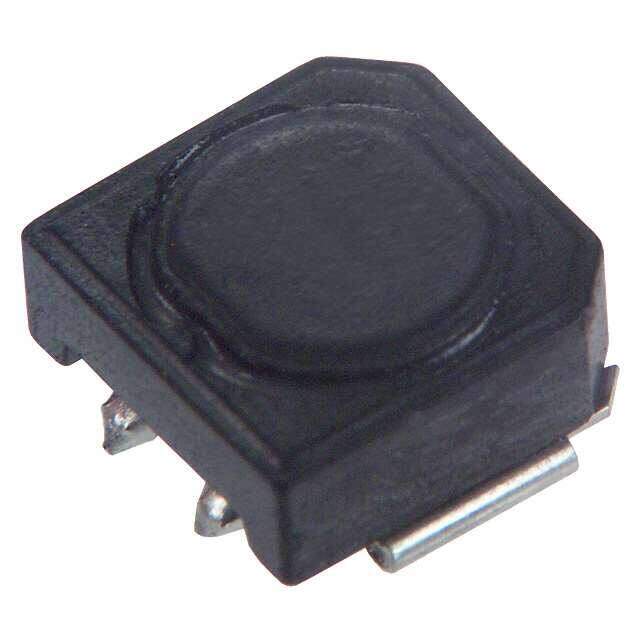

ELL-6SH471M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
H Nonstandard 0.252Lx0.236W 6.40mmx6.00mm 470muH
PDF
/
Buying Options
Total Price: USD $5.58
Unit Price: USD $5.57935
≥1 USD $5.57935
≥10 USD $4.57805
≥100 USD $4.4346
≥500 USD $4.29115
≥1000 USD $4.14865
Inventory: 18104
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Height Seated (Max) 0.130 3.30mm
Height 3.3mm
Technical
Series Resistance 3.2Ohm
DC Current 270mA
Inductance Tolerance 20%
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 200mA
Current 600mA
DC Resistance (DCR) 3.2Ohm
Test Frequency 100kHz
Inductance 470μH
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Military Standard Not
Current Rating 200mA
Construction Rectangular
Depth 6.5mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed
HTS Code 8504.50.80.00
Resistance 3.2Ohm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.252Lx0.236W 6.40mmx6.00mm
Series H
Published 2011
Packaging Tape & Reel (TR)
Physical
Core Material Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
