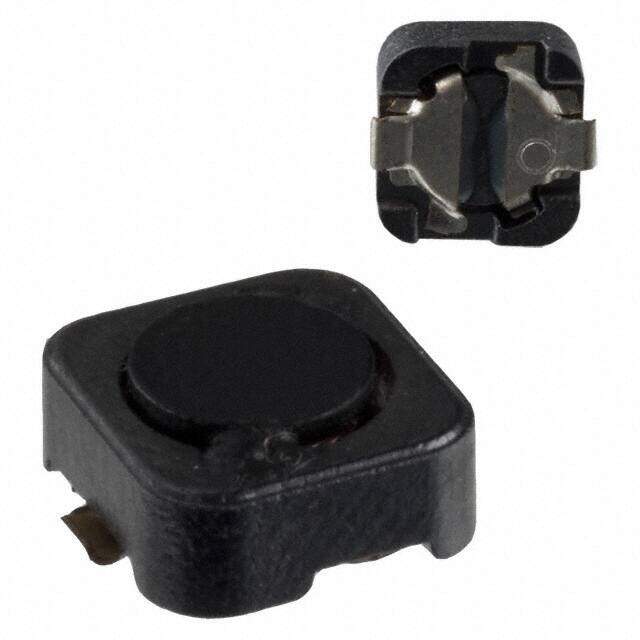

ELL-6RH180M image
Favorite
ELL-6RH180M image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description H Nonstandard 0.252Lx0.236W 6.40mmx6.00mm 18muH
PDF
/
Inventory: 3559
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.110 2.80mm

Technical

Special Feature DCR IS MEASURED AT 20 % TOLERANCE
Rated Current-Max 0.8A
Case/Size Code 2424
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 170mOhm
Inductance 18μH
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Construction Rectangular
Number of Functions 1
Shielding Shielded
Packing Method TR, Embossed
Current Rating (Amps) 800mA
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.252Lx0.236W 6.40mmx6.00mm
Series H
Published 2006
Packaging Tape & Reel (TR)

Physical

Core Material Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
