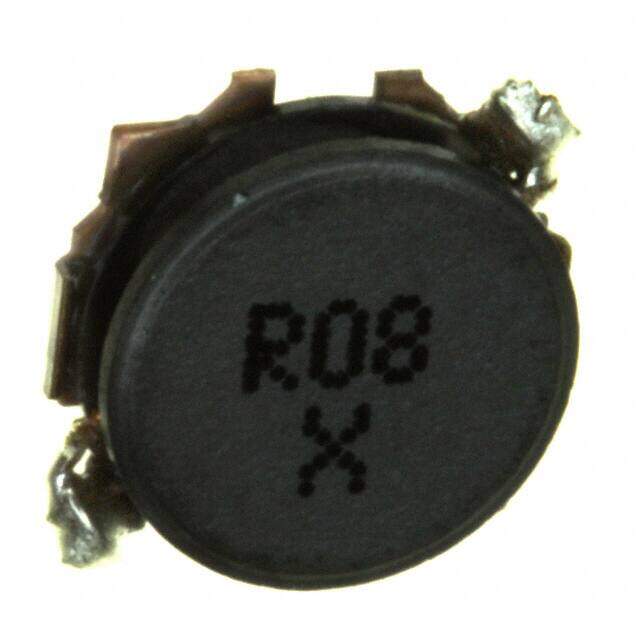

ELL-6PG3R9N image
Favorite
ELL-6PG3R9N image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description G Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 3.9muH
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.49016
≥100 USD $0.449504
≥500 USD $0.408672
≥1000 USD $0.363704
≥3000 USD $0.343235
Inventory: 585
Minimum: 1
-
+

Technical Details

Physical

Core Material FERRITE
Terminal Shape L BEND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Technical

Packaging Tape & Reel (TR)
Series G
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Tolerance ±30%
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
DC Current 1.9A
Case/Size Code 2424
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.9A
Current 700mA
DC Resistance (DCR) 51mOhm
Test Frequency 100kHz
Inductance 3.9μH
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Military Standard Not
Current Rating 1.6A
Depth 6.3mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3

Supply Chain

Factory Lead Time 12 Weeks

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.079 2.00mm
Height 2mm
