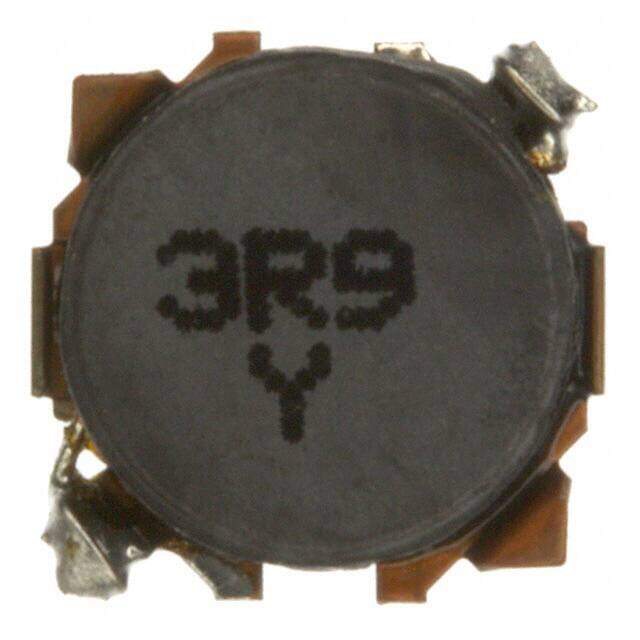

ELL-6GG3R9M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
G Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 3.9muH
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
≥10 USD $0.57992
≥100 USD $0.531872
Inventory: 76
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.063 1.60mm
Height 1.6mm
Technical
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
Case/Size Code 2424
Current - Saturation 1.65A
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.7A
DC Resistance (DCR) 60mOhm
Test Frequency 100kHz
Inductance 3.9μH
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Current Rating 1.7A
Depth 6.3mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Series G
Packaging Tape & Reel (TR)
Physical
Core Material FERRITE
Terminal Shape L BEND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
