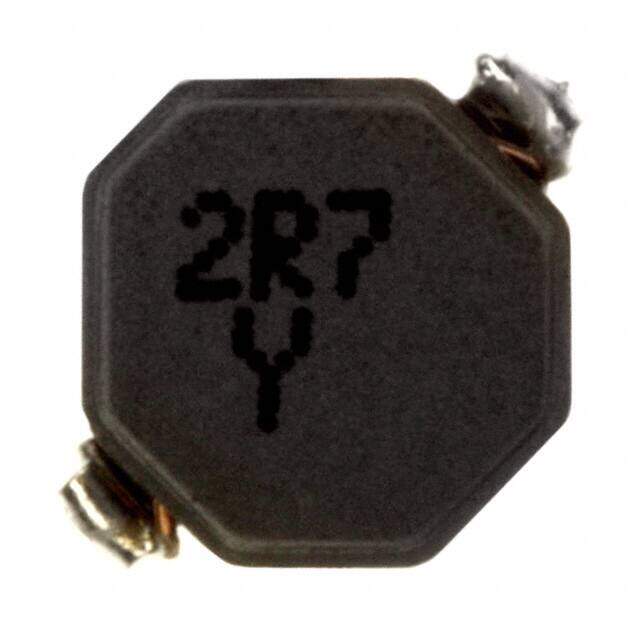

ELL-5PS2R7N image
Favorite
ELL-5PS2R7N image
Favorite
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description S Nonstandard 0.197Lx0.197W 5.00mmx5.00mm 2.7muH
PDF
/
Inventory: 1638
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Shape/Size Description RECTANGULAR PACKAGE

Technical

Packaging Tape & Reel (TR)
Published 2015
Series S
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Tolerance ±30%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 40mOhm
HTS Code 8504.50.80.00
Current Rating (Amps) 2.05A
Shielding Shielded
Number of Functions 1
Depth 6mm
Current Rating 2A
Military Standard Not
Inductance 2.7μH
Test Frequency 100kHz
DC Resistance (DCR) 40mOhm
Current 450mA
Max DC Current 2A
Inductor Application DC-DC CONVERTER
Terminal Placement DUAL ENDED
Inductance Tolerance 30%
DC Current 2.05A
RMS Current (Irms) 2A
Series Resistance 40mOhm
Self Resonant Frequency 100kHz

Dimensions

Height 2mm
Height Seated (Max) 0.079 2.00mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
