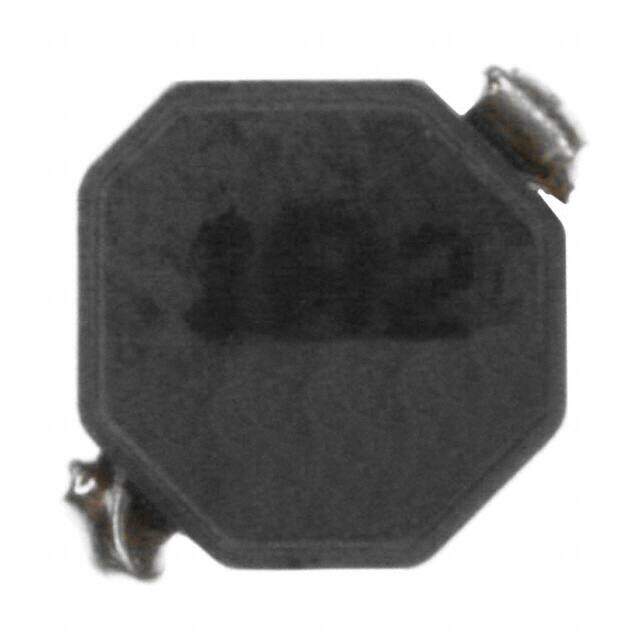

ELL-5PS1R2N image
Favorite
ELL-5PS1R2N image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description S Nonstandard 0.197Lx0.197W 5.00mmx5.00mm 1.2muH
PDF
/
Inventory: 7185
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Shape/Size Description RECTANGULAR PACKAGE

Technical

Packaging Tape & Reel (TR)
Published 2008
Series S
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Tolerance ±30%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 2.5A
Shielding NO
Number of Functions 1
Reach Compliance Code unknown
Inductance 1.2μH
Test Frequency 0.1MHz
DC Resistance (DCR) 22mOhm
Inductor Application DC-DC CONVERTER
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Case/Size Code 2222
Rated Current-Max 2.5A

Dimensions

Height Seated (Max) 0.079 2.00mm

Compliance

RoHS Status RoHS Compliant
