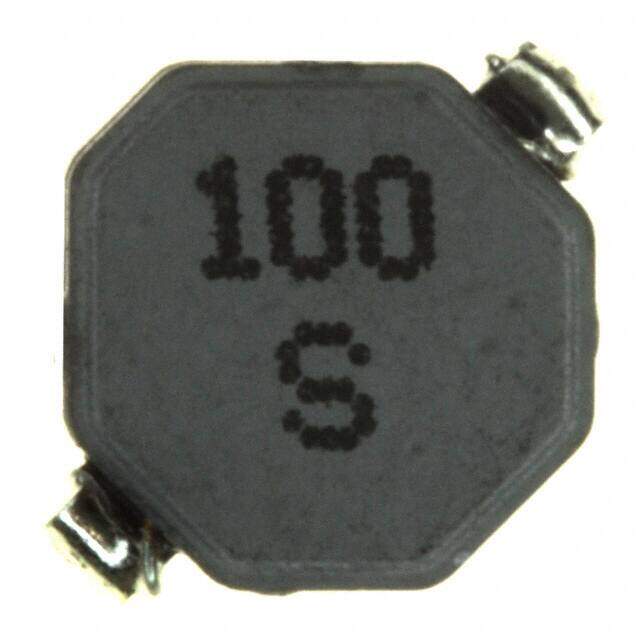

ELL-5PS100M image
Favorite
ELL-5PS100M image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 10μH Shielded Wirewound Inductor 1.1A 120mOhm Nonstandard
PDF
/
Inventory: 7980
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Packaging Tape & Reel (TR)
Published 2008
Series S
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 1.1A
Shielding Shielded
Reach Compliance Code unknown
Inductance 10μH
DC Resistance (DCR) 120mOhm
Inductance Frequency - Test 100kHz
Current - Saturation 1A

Dimensions

Height Seated (Max) 0.079 2.00mm

Compliance

RoHS Status RoHS Compliant
