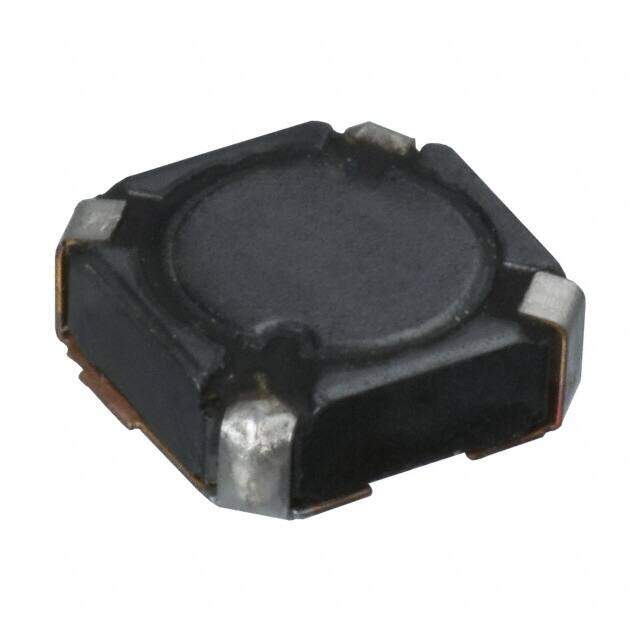

ELL-5PM3R0N
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 3UH 1.8A 36 MOHM SMD
PDF
/
Inventory: 4618
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.079 2.00mm
Technical
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 36mOhm
Test Frequency 100kHz
Inductance 3μH
Current Rating 1.8A
Reach Compliance Code unknown
Shielding Shielded
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Tolerance ±30%
Size / Dimension 0.205Lx0.205W 5.20mmx5.20mm
Series M
Published 2005
Packaging Tape & Reel (TR)
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
