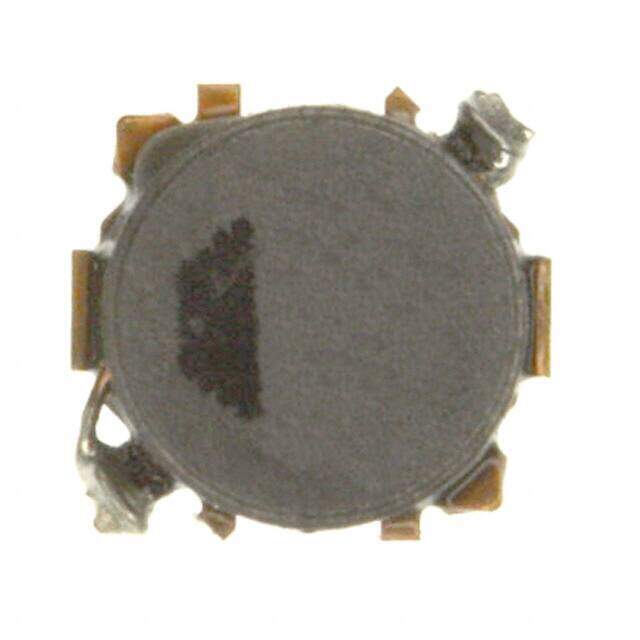

ELL-4LG1R5NA
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
G Nonstandard 0.150Lx0.150W 3.80mmx3.80mm 1.5muH
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.633345
≥1 USD $0.633345
≥10 USD $0.597496
≥100 USD $0.563678
≥500 USD $0.531771
≥1000 USD $0.501672
Inventory: 1144
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Core Material Ferrite
Technical
Packaging Tape & Reel (TR)
Series G
Size / Dimension 0.150Lx0.150W 3.80mmx3.80mm
Tolerance ±30%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR, Embossed
Shielding YES
Number of Functions 1
Depth 4mm
Current Rating 1.8A
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Inductance 1.5μH
Test Frequency 100kHz
DC Resistance (DCR) 48mOhm
Max DC Current 1.8A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 1.7A
Case/Size Code 1515
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
Dimensions
Height 1.8mm
Height Seated (Max) 0.071 1.80mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
