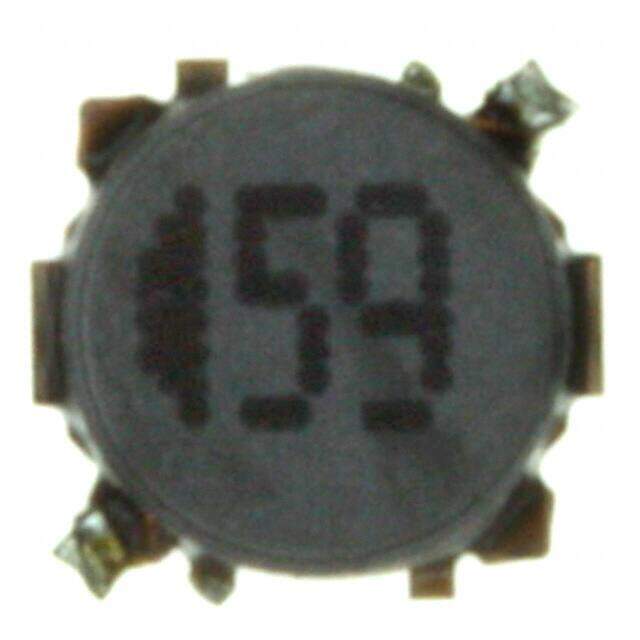

ELL-4LG151MA image
Favorite
ELL-4LG151MA image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description G Nonstandard 0.150Lx0.150W 3.80mmx3.80mm 150muH
PDF
/
Inventory: 8620
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Core Material Ferrite

Technical

Packaging Tape & Reel (TR)
Published 2012
Series G
Size / Dimension 0.150Lx0.150W 3.80mmx3.80mm
Tolerance ±20%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR, Embossed
Shielding YES
Number of Functions 1
Depth 4mm
Current Rating 220mA
Military Standard Not
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Inductance 150μH
Test Frequency 100kHz
DC Resistance (DCR) 3Ohm
Max DC Current 220mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 1515
DC Current 220mA
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE

Dimensions

Height 1.8mm
Height Seated (Max) 0.071 1.80mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
