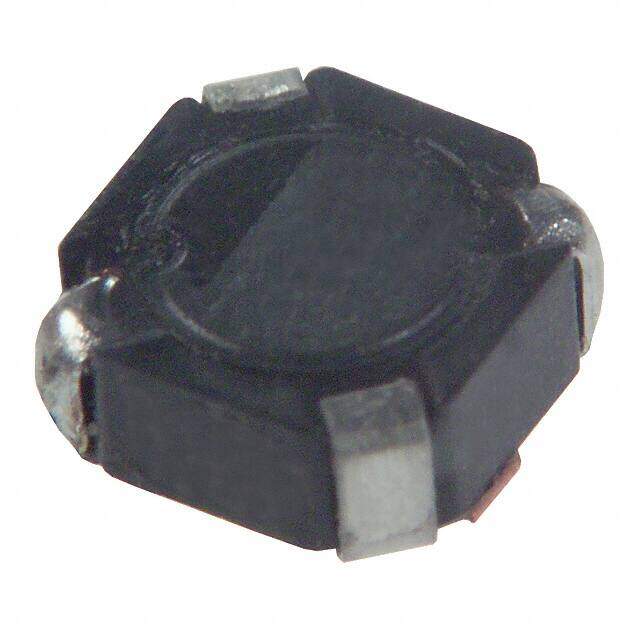

ELL-4GM180M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
M Nonstandard 0.150Lx0.150W 3.80mmx3.80mm 18muH
PDF
/
Inventory: 7803
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Packaging Tape & Reel (TR)
Published 2005
Series M
Size / Dimension 0.150Lx0.150W 3.80mmx3.80mm
Tolerance ±20%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Reach Compliance Code unknown
Current Rating 400mA
Inductance 18μH
Test Frequency 100kHz
DC Resistance (DCR) 490mOhm
Inductor Application DC-DC CONVERTER
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Case/Size Code 1515
Rated Current-Max 0.4A
Dimensions
Height Seated (Max) 0.059 1.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
