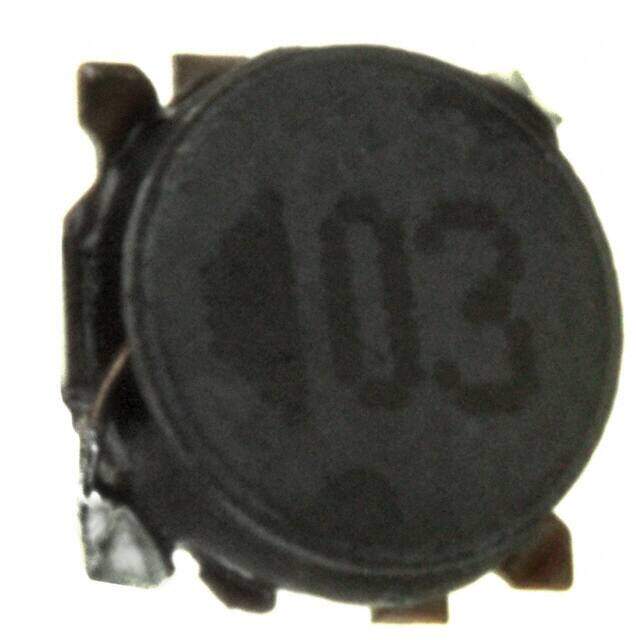

ELL-4GG470M image
Favorite
ELL-4GG470M image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description G Nonstandard 0.150Lx0.150W 3.80mmx3.80mm 47muH
PDF
/
Inventory: 999
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Core Material FERRITE

Technical

Packaging Tape & Reel (TR)
Published 2002
Series G
Size / Dimension 0.150Lx0.150W 3.80mmx3.80mm
Tolerance ±20%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Current Rating (Amps) 350mA
Packing Method TR, Embossed
Shielding Shielded
Number of Functions 1
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Inductance 47μH
Test Frequency 0.1MHz
DC Resistance (DCR) 1.25Ohm
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 400mA
Case/Size Code 1515
Rated Current-Max 0.35A
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE

Dimensions

Height Seated (Max) 0.055 1.40mm

Compliance

RoHS Status ROHS3 Compliant
