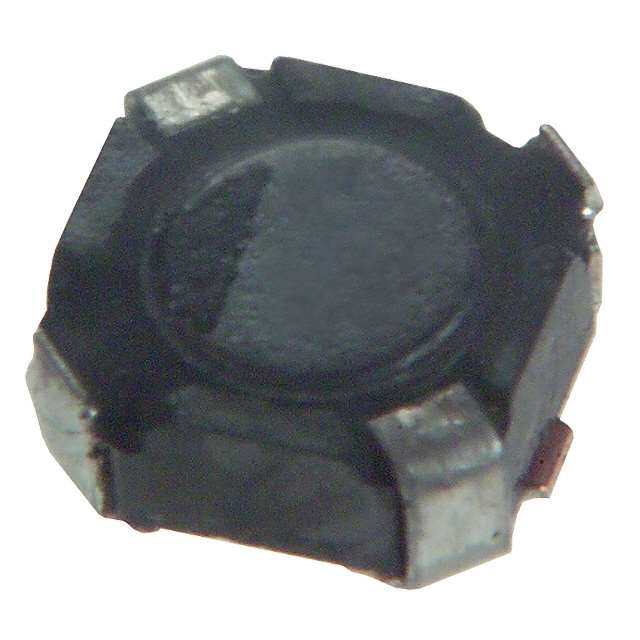

ELL-3GM2R7N
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
M Nonstandard 0.126Lx0.126W 3.20mmx3.20mm 2.7muH
PDF
/
Inventory: 2029
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Packaging Tape & Reel (TR)
Published 2005
Series M
Size / Dimension 0.126Lx0.126W 3.20mmx3.20mm
Tolerance ±30%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Current Rating (Amps) 1A
Shielding YES
Number of Functions 1
Reach Compliance Code unknown
Inductance 2.7μH
DC Resistance (DCR) 110mOhm
Inductor Application DC-DC CONVERTER
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Rated Current-Max 1A
Dimensions
Height Seated (Max) 0.059 1.50mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead

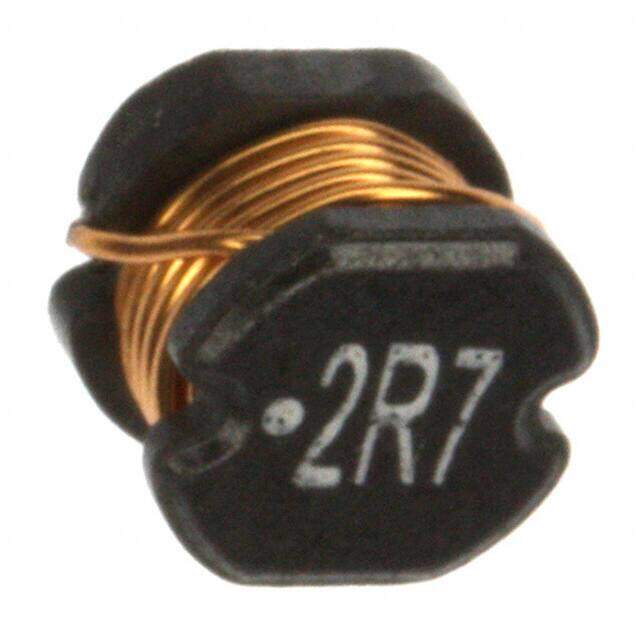

Alternative Model
