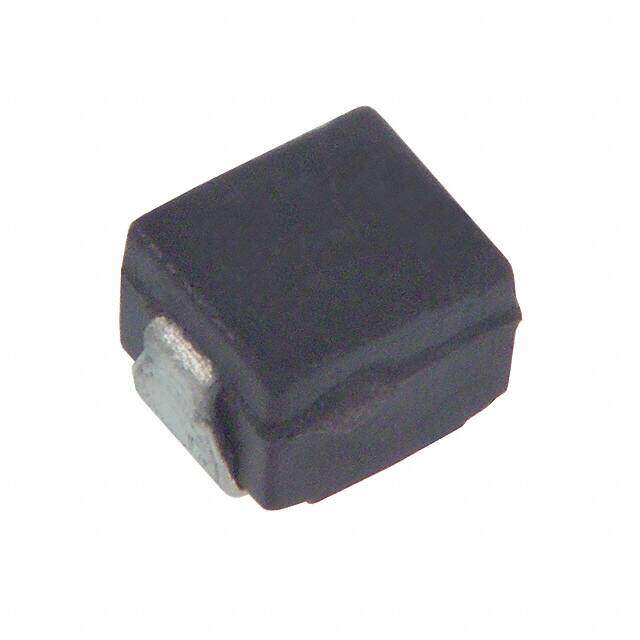

ELJ-SC390KF image
Favorite
ELJ-SC390KF image
Favorite
RoHS
/
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description SC 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 39muH
PDF
/
Inventory: 2812
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.071 1.80mm
Height 1.5748mm

Technical

Q @ Freq 40 @ 2.52MHz
Frequency - Self Resonant 15MHz
Max DC Current 13mA
Current 8mA
DC Resistance (DCR) 5.7Ohm Max
Test Frequency 2.52MHz
Inductance 39μH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 13mA
Depth 2.2mm
Shielding Shielded
HTS Code 8504.50.80.00
Min Operating Temperature -20°C
Max Operating Temperature 85°C
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Tolerance ±10%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series SC
Published 2011
Packaging Tape & Reel (TR)

Physical

Core Material Ferrite
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
