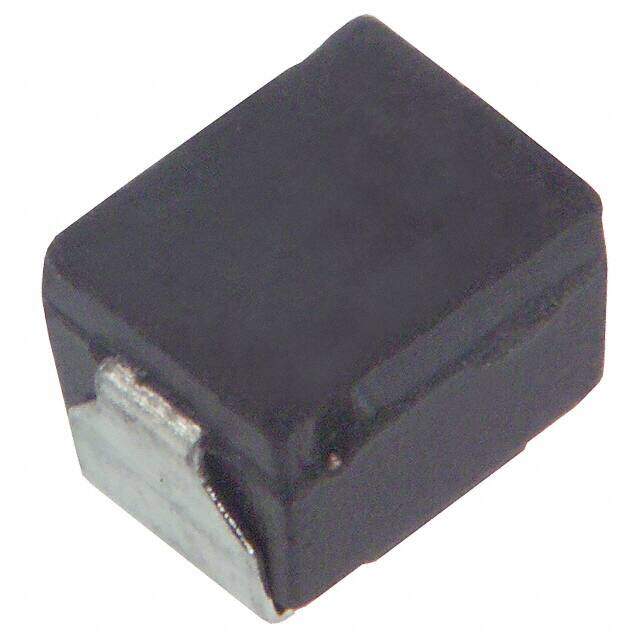

ELJ-EA3R3MF
RoHS
/
Package 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
EA 1210 (3225Metric) 0.126Lx0.098W 3.20mmx2.50mm 3.3muH
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.51905
≥1 USD $1.51905
≥10 USD $1.2464
≥100 USD $1.20745
≥500 USD $1.1685
≥1000 USD $1.12955
Inventory: 20009
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Terminal Shape J BEND
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite
Technical
Operating Temperature -20°C~85°C
Packaging Tape & Reel (TR)
Published 2011
Series EA
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Tolerance ±20%
JESD-609 Code e2
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
Type Wirewound
Terminal Finish Tin/Copper (Sn/Cu)
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 2.7mm
Construction Magnetic Shield
Current Rating 270mA
Case Code (Metric) 3225
Case Code (Imperial) 1210
Inductance 3.3μH
Test Frequency 7.9MHz
DC Resistance (DCR) 120mOhm Max
Current 35mA
Max DC Current 270mA
Frequency - Self Resonant 50MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 7 @ 7.96MHz
Quality Factor-Min (at L-nom) 7
Inductance Frequency - Test 7.96MHz
Q Factor 7
Dimensions
Height 2.2mm
Height Seated (Max) 0.094 2.40mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
