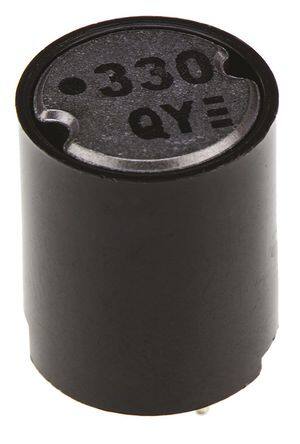

ELC11D330F
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ELC11D Radial Vertical Cylinder 0.453Dia 11.50mm 33muH
PDF
/
Inventory: 1460
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Packaging Bulk
Published 2006
Series ELC11D
Size / Dimension 0.453Dia 11.50mm
Tolerance ±10%
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Resistance 51mOhm
Terminal Finish Tin/Copper (Sn/Cu)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Cylindrical
Current Rating 2.6A
Military Standard Not
Lead Pitch 5mm
Operating Temperature (Max) 105°C
Inductance 33μH
Test Frequency 10kHz
DC Resistance (DCR) 51mOhm
Max DC Current 2.6A
Inductor Application POWER INDUCTOR
Lead/Base Style Radial
Inductance Tolerance 10%
DC Current 2.6A
RMS Current (Irms) 2.6A
Series Resistance 51mOhm
Self Resonant Frequency 10kHz
Dimensions
Diameter 11.5mm
Height 13.9mm
Height Seated (Max) 0.547 13.90mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
