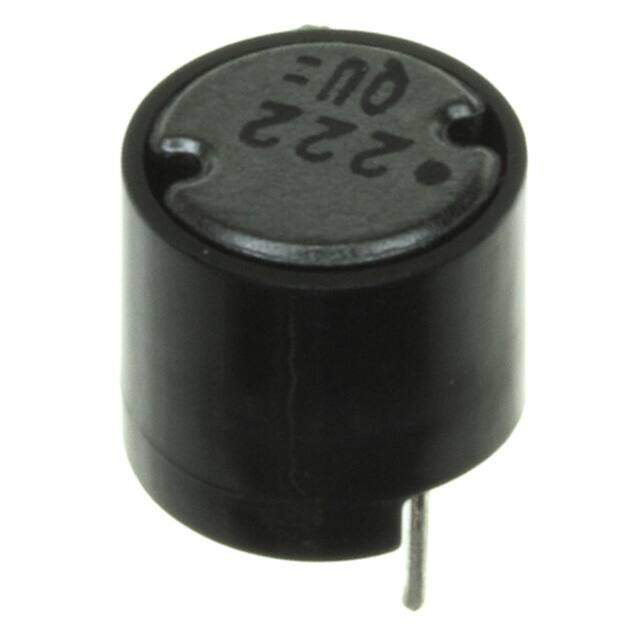

ELC-09D100DF
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
09D Radial Vertical Cylinder 0.374Dia 9.50mm 10muH
PDF
/
Inventory: 4689
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.350 8.90mm
Height 8.89mm
Technical
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
DC Current 2.5A
Lead/Base Style Radial
Inductor Application POWER INDUCTOR
Max DC Current 2.5A
Current 1.4A
DC Resistance (DCR) 27mOhm
Test Frequency 10kHz
Inductance 10μH
Lead Diameter 0.6 mm
Lead Length 4mm
Operating Temperature (Min) -20°C
Operating Temperature (Max) 105°C
Lead Pitch 5mm
Military Standard Not
Current Rating 2.5A
Construction Cylindrical
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Tolerance ±20%
Size / Dimension 0.374Dia 9.50mm
Series 09D
Published 2006
Packaging Tape & Reel (TR)
Physical
Core Material Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
