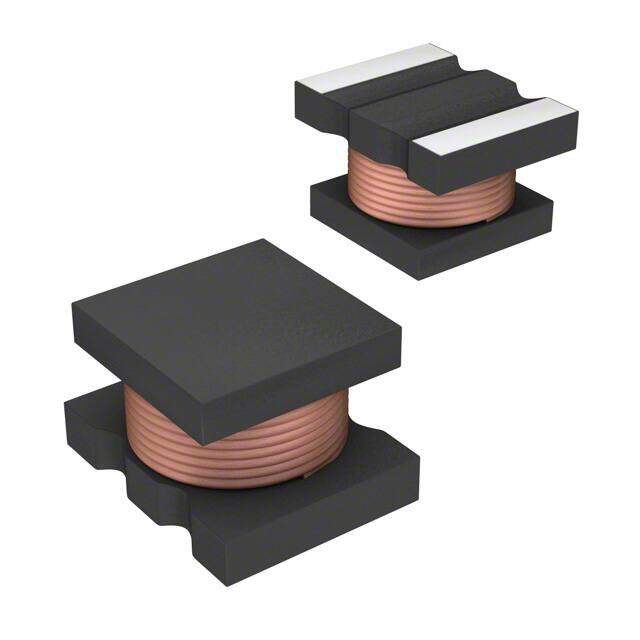

82102C image
Favorite
RoHS
RoHS RoHS compliant
Package 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description 8200 1210 (3225Metric) 0.126Lx0.098W 3.20mmx2.50mm 1muH
PDF
/
Inventory: 4058
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Core Material IRON

Technical

Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Series 8200
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 2.7mm
Construction Chip
Current Rating 2A
Case Code (Metric) 3225
Case Code (Imperial) 1210
Inductance 1μH
Test Frequency 10kHz
DC Resistance (DCR) 58mOhm Max
Max DC Current 2A
Frequency - Self Resonant 133MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 18 @ 1MHz
Quality Factor-Min (at L-nom) 18
Q Factor 18
Special Feature Q MEASURED AT 1 MHZ

Dimensions

Height 2mm
Height Seated (Max) 0.091 2.30mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
